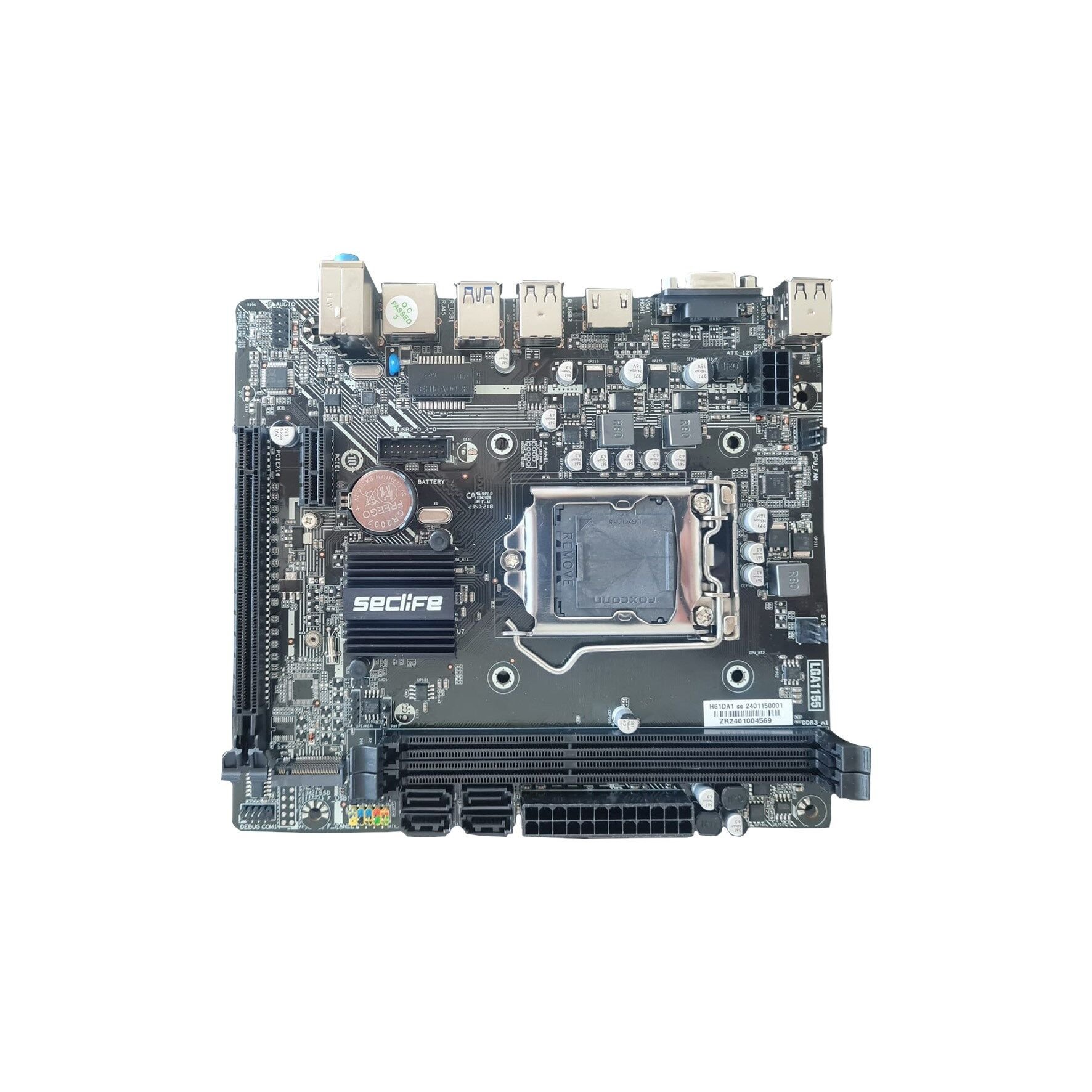

Seclife H61 H61DA1 S+V+L Hdmı M.2 SSD DDR3 mATX 1155p Box
| Processor |
Support Intel® Socket 1155 for 2nd/3rd Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H61 |
| Memory support |
2 * DDR3 1066/1333/1600MHz DIMM |
| Graphic |
Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HD / VGA ports |
| Slots |
1 x PCIe x16 slot |
| Storage
|
1 x M.2 Socket, Supports 2280 SSD 4 x SATA 3Gb/s Ports |
| LAN | Realtek Chip, 1 x 100M(Optional 1000M) |
| Audio | Realtek Chip, ALC 6-channel audio |
| USB |
10 * USB 2.0 port (6 at back panel, black, 4 at mid-board) |
| Back Panel I/O |
1 x VGA Port 1 x HDMI Port 1 x LAN (RJ45) Port 6 x USB 2.0 Ports 3 x flexible audio jacks |
| Internal I/O |
1 x USB 19pin connector, supports 2*USB 2.0 ports 1 x USB 2.0 connector, supports 2*USB 2.0 ports 4 x SATA 3Gb/s Ports 1 x 4 -pin CPU_FAN/SYS_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector |
| Dimension | 213 x 170mm |
