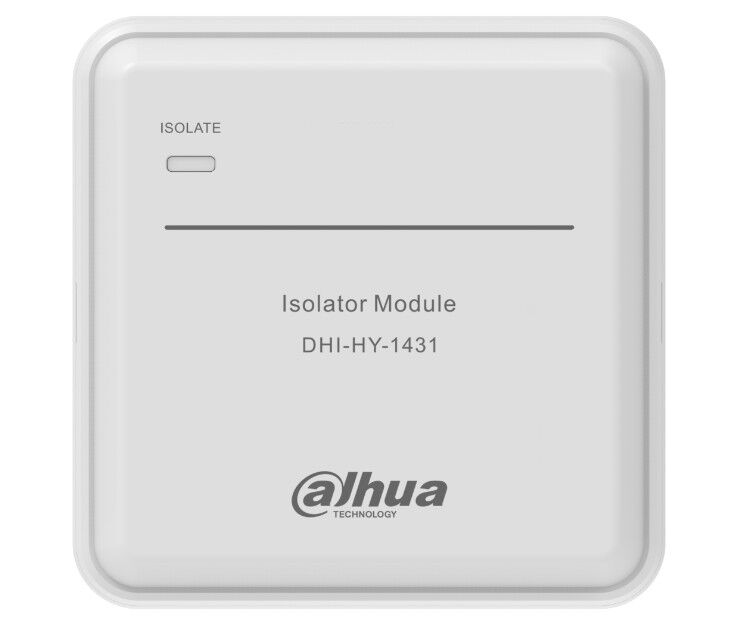

Dahua HY-1431 İzolatör Modülü
0 Yorum
368,93 TL
Son kalan ürün:
0
Ücretsiz Kargo
Müşteri Hizmeti Güvencesi!
Ayrıcalıklı Teknik Servis Hizmeti!
Kurumsal Satışa Özel Fiyatlar
Sıkça Sorulan Sorular
Soru Sor - Kurumsal Teklif Al
Markalarımız
İade Politikası
|
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Voltage |
24V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Current |
Monitoring current: ? 150µA Alarm current: ? 8mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Short Circuit Current |
450mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Indicator |
Red LED flashes once every 6 seconds during polling, flashes once every 2 seconds during malfunctioned, and remains lit during short circuit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Wiring | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wiring |
Two-wire, polarity-free | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Distance |
? 1500 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20°C to +65°C (–4°F to +149°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
? 95% RH (no condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color |
White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (with base) |
90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight (with base) |
107 g (0.24 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certification |
GB16806-2006 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
GB16806-2005 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
