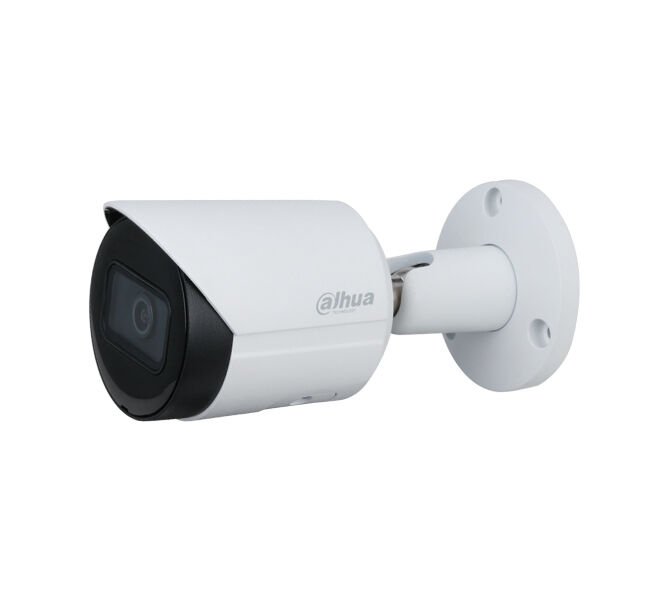

Dahua IPC-HFW1230S-S-0360B-S4 2Mp 3.6mm Starlight SDKart Poe IP Bullet Kamera
1.767,93 TL
| Teknik Özellikleri | Dahua IPC-HFW1230S-S |
| Image Sensör | 1/2.7”2Megapixel progressive CMOS |
| Max. Resolution | 1920(H) × 1080 (V) |
| ROM | 128MB |
| RAM | 128MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto manual 1/3 s-1 / 1000000 s |
| S/N Radio | > 56 dB |
| Min. Illumination | 0.005 Lux@F1.6 |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° |
| Tilt: 0°–90° | |
| Rotation: 0°–360° | |
| Lens | |
| Lens Type | Fixed focal |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| 3.6mm | |
| Max. Aperture | F1.6 |
| F1.6 | |
| Field of View | 2.8 mm: |
| Horizontal 110.0° × Vertical: 59.0° × Diagonal: 132.0° | |
| 3.6 mm: | |
| Horizontal 91.0° × Vertical 48.0° × Diagonal 109.0° | |
| Irıs Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.6 m (1.97 ft) |
| 3.6 mm: 1.1 m (3.61 ft) | |
| Dorı Distance | Lens |
| 2.8mm | |
| 3.6mm | |
| Smart Event | |
| IVS | Tripware instrusion |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG(only supported |
| by sub stream) | |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: |
| 1920 × 1080 (1 fps-25/30 fps) | |
| Sub stream: | |
| 704 × 576 (1 fps-25 fps) | |
| 704 × 480 (1 fps-30 fps) | |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps |
| H.265: 12 kbps–6144 kbps | |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | YES |
| HLC | YES |
| WDR | DWDR |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | YES |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower.) |
| Mirror | YES |
| Privacy Masking | 4 AREAS |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IE |
| Chrome | |
| Firefox | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1 |
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |
| FCC: 47 CFR FCC Part 15, Subpart B | |
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 4.6W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ? 95% RH |
| Strorage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 166.2 mm × ?70 mm (6.54" × ?2.76") |
| Net Weight | 0.48 kg (1.1 lb) |
| Gross Weight | 0.57 kg (1.3 lb) |
|
Garantyi Süresi |
24 Ay |
