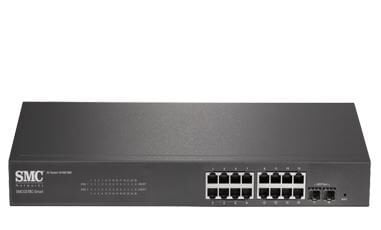

SMC SMCGS18C 16 PORT GIGABIT WEB SMART SWICH
|
Marka |
SMC |
|
ÜrüKodu |
SMCGS18C |
|
PERFORMANCE |
16 10/100/1000BASE-T RJ-45 ports |
|
2 Gigabit Ethernet SFP slots | |
|
(SFP ports support dual speed 100/1000BASE-X) | |
|
Switching Capability 36 Gbps | |
|
Packet Buffer Size 512KB | |
|
MAC Address Table 8K | |
|
Flash 16MB | |
|
L2 FEATURES |
Auto-negotiatiofor port speed and duplex mode |
|
Flow Control |
IEEE 802.3x for full-duplex mode |
|
Back-Pressure for half-duplex mode | |
|
Spanning Tree Protocol | |
|
IEEE 802.1D Spanning Tree Protocol (STP) | |
|
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) | |
|
STP Auto Edge | |
|
VLANs |
Supports 4K IEEE 802.1Q VLANs |
|
Port-based VLANs | |
|
Voice VLAN | |
|
Private VLAN | |
|
Link Aggregation |
Static Trunk |
|
IEEE 802.3ad Link AggregatioControl Protocol | |
|
Trunk groups 9 trunk links Up to 12 ports | |
|
IGMP Snooping |
nIGMP snooping v1/v2/v3 |
|
IGMP immediate leave | |
|
Supports jumbo frames up to 10 KB | |
|
QoS FEATURES |
Priority Queues 8 hardware queues per port |
|
Traffic classificatiobased oIEEE 802.1p CoS, DSCP, | |
|
Supports WRR, Strict scheduling, or hybrid mode | |
|
Rate Limiting |
Ingress Resolutio16 Kbps |
|
Egress Resolutio16 Kbps | |
|
SECURITY |
Port security static and dynamic |
|
Supports IEEE 802.1X port based and MAC-based | |
|
EAPOL transparent | |
|
MAC authentication | |
|
Web authentication | |
|
HTTPS/SSL | |
|
SSH v1.5/v2.0 | |
|
MAC Filter/IP Filter | |
|
DHCP Snooping | |
|
MANAGEMENT |
Switch Management |
|
Web management | |
|
SNMP v1/v2/v3 | |
|
Firmware and Configuration | |
|
upgrade/downgrade via TFTP/HTTP | |
|
Supports DHCP Client | |
|
Supports LLDP (802.1ab) and LLDP-MED | |
|
RMO(groups 1, 2, 3, and 9) | |
|
Port mirroring one to one and many to one | |
|
Event log local flash, syslog, remote server (RFC3164) and SMTP | |
|
(RFC821) | |
|
SNTP (IPv4/IPv6) | |
|
Loop detectioand prevention | |
|
UPnP | |
|
Cable diagnostics | |
|
IPv6 management |
IPv4/IPv6 dual protocol stack |
|
IPv6 address types unicast/multicast | |
|
IPv6 Ping/tracert | |
|
ICMPv6 and ICMPv6 redirect | |
|
IPv6 neighbor discovery | |
|
IPv6 stateless auto config/manual config | |
|
IPv6 Telnet/SNMP/HTTP/DHCP | |
|
MECHANICAL |
Dimensions (W x D x H) |
|
43 x 18 x 4.4 cm | |
|
Weight TBD | |
|
LED Indicators Port, Uplink, System, Diagnostic | |
|
AC Power |
100 to 240 V, 50-60 Hz, 0.5A |
|
Power Supply |
Internal, auto-ranging transformer 100 to 240 VAC, 47 to 63 Hz |
|
Power Consumption |
20 Watts for System Power |
|
ELECTROMAGNETIC COMPATIBILITY | |
|
CE Mark | |
|
FCC Class A | |
|
E55022 (CISRP 22) Class A | |
|
E61000-3-2/3 | |
|
ENVIRONMENTAL SPECIFICATIONS | |
|
Temperature |
-0°C to 50°C (standard operating) |
|
-40°C to 70°C (non-operating) | |
|
Humidity 10% to 90% (non-condensing) | |
|
Vibration IEC 68-2-36, IEC 68-2-6 | |
|
Shock IEC 68-2-29 | |
|
Drop IEC 68-2-32 | |
|
SAFETY | |
|
CSA (CSA 22.2 NO 60950-1 & UL 60950-1) | |
|
CB (IEC/EN60950-1) | |
|
Garanti |
2 Yıl |
