Mod

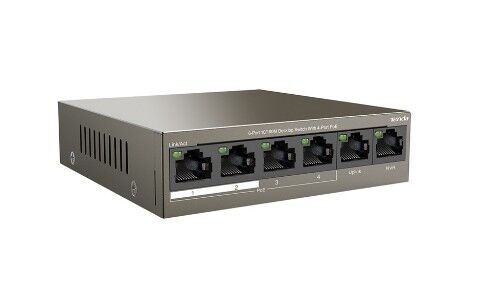

TEF1106P-4-63W
Standart
IEEE 802.3/3u/3x, IEEE 802.3af/at
LED
6 * Link/Ack LED indicators
1 * Power LED indicator
1 * Power LED indicator
Arayüz
4 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 * 10/100 Mbps Base-TX RJ45 ports (Data)
2 * 10/100 Mbps Base-TX RJ45 ports (Data)
Yönlendirme Hızı
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
100BASE-TX: 148800pps/port
Özellikler
1 K MAC address table
1.2 Gbps backplane bandwidth
1.2 Gbps backplane bandwidth
Güç Çıkışı
51V 1.25A DC
30W output per PoE port
63W output the whole device
30W output per PoE port
63W output the whole device
Kablosuz Hız
10/100Mbps at Half Duplex
20/200Mbps at Full Duplex
20/200Mbps at Full Duplex
Boyut
100*100*26mm
Çevre
Operating environment
Temperature: (0 - 45)°C
Humidity: (10% - 90%) RH, non-condensing
Storage environment
Temperature: (-40 - 70)°C
Humidity: (5% - 90%) RH, non-condensing
Temperature: (0 - 45)°C
Humidity: (10% - 90%) RH, non-condensing
Storage environment
Temperature: (-40 - 70)°C
Humidity: (5% - 90%) RH, non-condensing
