| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | • 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m) |
| Fan Sayısı | Fanless |
| Kurulum | • Desktop • Wall Mounting |
| Güç Kaynağı | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Portları (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4, up to 30 W PoE output per port • Power Supply: 65 W |
| Boyutlar ( W X D X H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Maks. Güç Tüketimi | • 4 W (220/50 Hz. no PD connected) • 74.46 W (220/50 Hz. with 65 W PD connected) |
| Max. Heat Dissipation | • 13.6 BTU/h (no PD connected) • 253.16 BTU/h (with 65 W PD connected) |
| PERFORMANS | |
|---|---|
| Anahtarlama Kapasitesi | 10 Gbps |
| Paket Yönlendirme Hızı | 7.44 Mpps |
| MAC Adres Tablosu | 2K |
| Jumbo Frame | 16 KB |
| YAZILIM ÖZELLİKLERİ | |
|---|---|

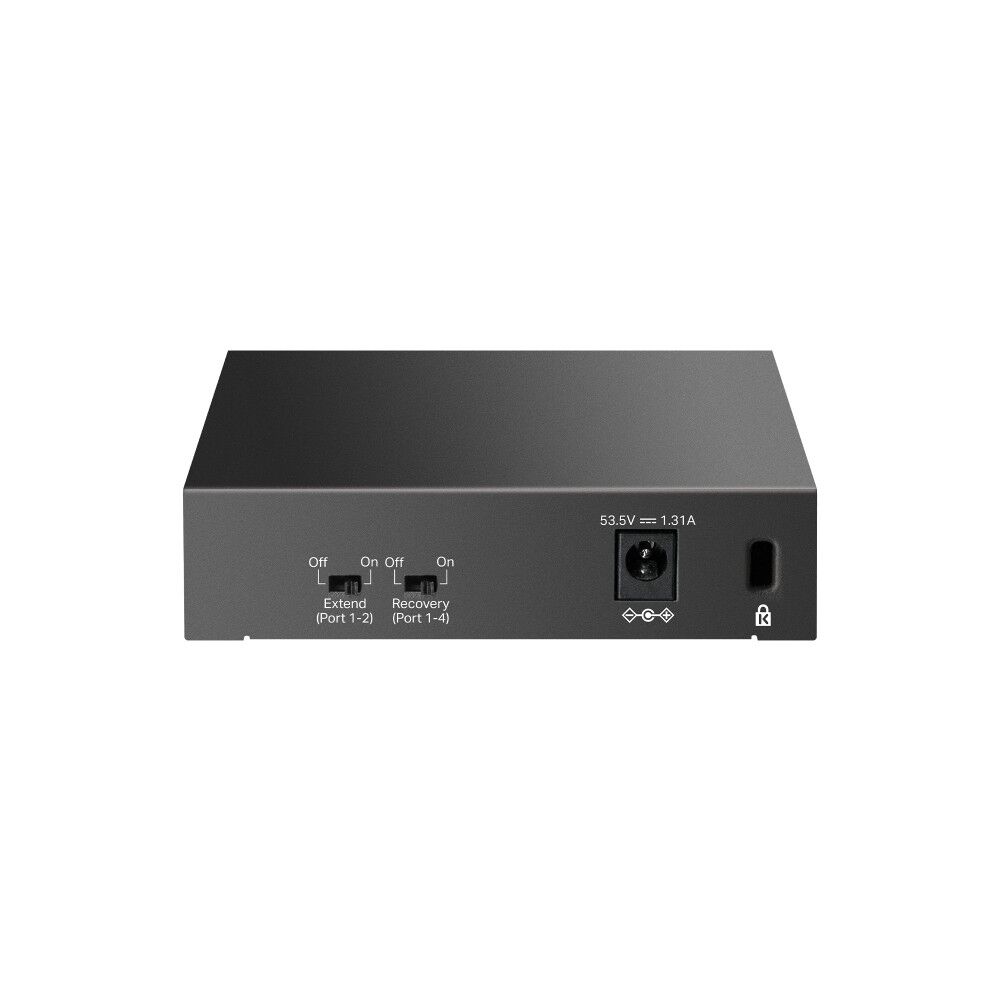

| Gelişmiş Özellikler | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-4) • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| İletim Metodu | Store-And-Forward |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |
| Paket İçeriği | • LS105GP • Power Adapter • Installation Guide |
| Ortam | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
