- Hardware
- Boyutlar (E X B X Y)
-
99.8*98*25mm
- PoE Ports
-
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Arayüzler
-
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- Harici Güç Kaynağı
-
External Power Adapter (Output: 53.5V/1.31A)
- Standartlar ve Protokoller
-
IEEE 802.3x Flow Control
- Data Rates
-
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex - Jumbo Frame
-
9 KB
- Mac Address Table
-
2K
- Max Power Consumption
-
3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)
- Max Heat Dissipation
-
10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)
- Diğerleri
- Package Contents
-

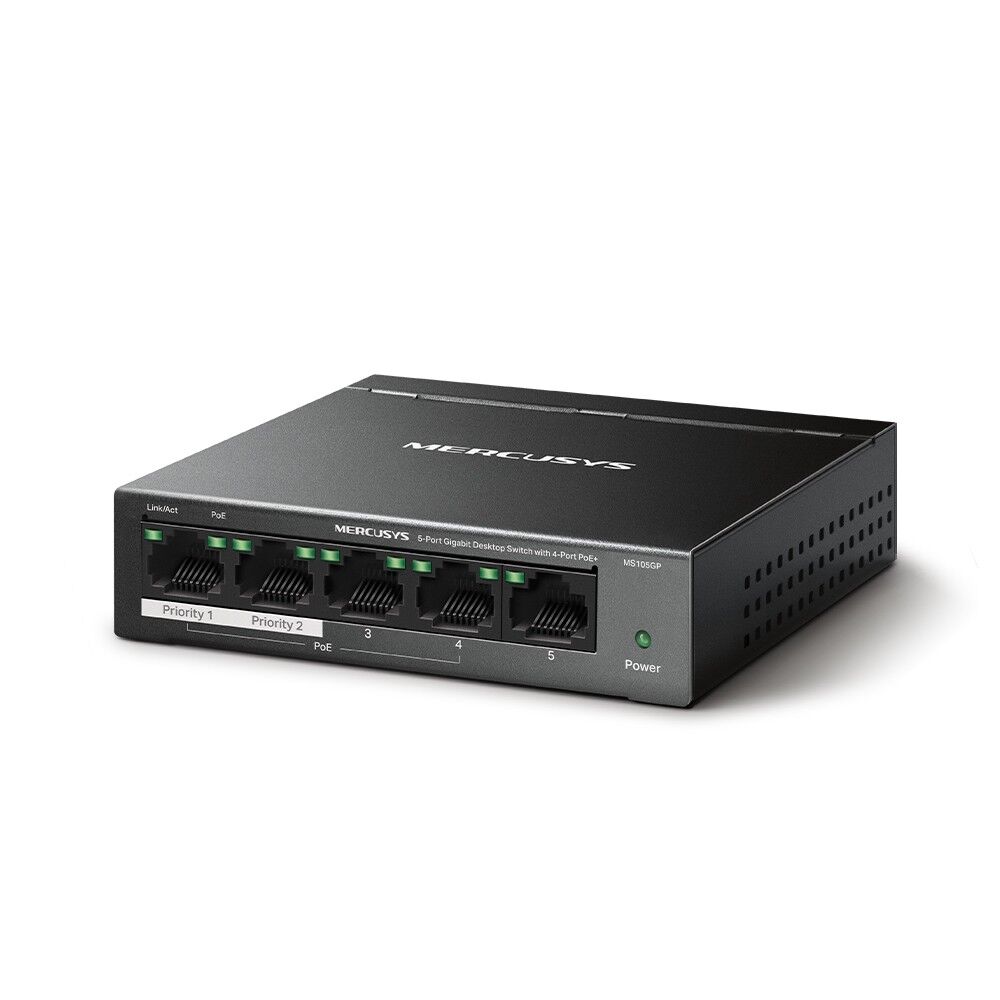

• 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
• Power Adapter
• Quick Installation Guide - Environment
-
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
